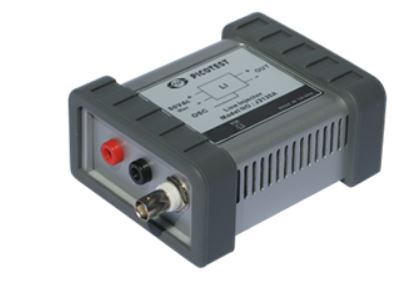

  • Line Injector 라인 인젝터 / J2120A / PICOTEST

    인젝션 변압기는 광대역 어댑터이지만 전원 공급기 또는 Opamp의 리플 제거(PSRR)를 측정하는 데는 유용하지 않습니다. 이는 주입 변압기의 성능을 매우 좋게 만드는 특성으로 인해 변압기가 DC 전류에 견딜 수 없게 되기 때문입니다. 매우 작은 DC 전류(5mA 이하)도 신호 용량을 크게 줄이거나 변압기를 완전히 포화시킬 수 있습니다. 이러한 이유로 PICOTEST사의 라인 인젝터(J2120A) 같은 어댑터가 필요합니다.

    라인 인젝터를 전류 프로브와 함께 사용하여 전원 공급기의 입력 임피던스를 측정할 수도 있습니다. 스위칭 전력 공급기 또는 조절기의 입력 임피던스는 음의 값이며, 이는 EMI 필터와 결합할 경우 안정성 문제가 되므로 측정은 설계, 분석 및 검증 프로세스의 중요한 부분이 됩니다. 전류 프로브를 1A/V로 설정하거나 다른 설정에 따라 결과를 스케일링해야 합니다.

    10Hz-10MHz usable bandwidth
    Low loss design
    5 Amps maximum current
    50VDC max input
    Easily measure input filters and PSRR

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
    더보기

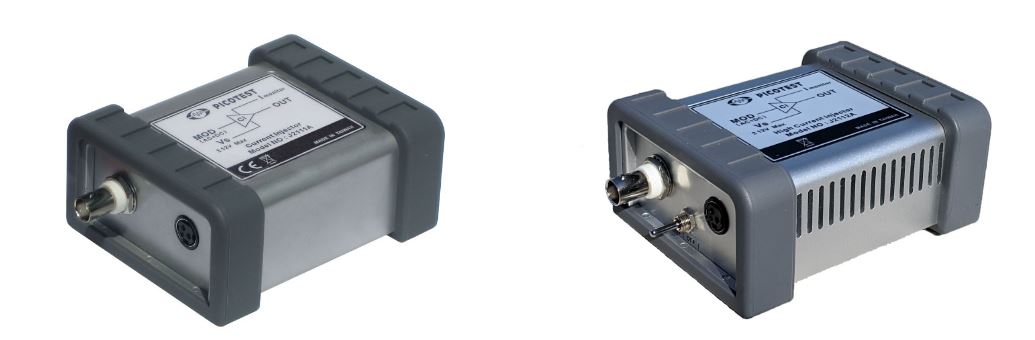

  • Current Injector 전류 인젝터 / J2111A, J2112A (High current) / PICOTEST

    -J2111A Current Injector
    High PSRR Low Noise Regulator with Universal input
    Output Current Variation (Controllable) - 50mA
    Total Output Current Variation (Controllable+Bias) - 74mA
    20nSec typ rise and fall time
    DC-40MHz usable range (interconnection dependent)
    Two Quadrant Bipolar operation works with positive or negative source
    Built in offset for use with Network Analyzer
    Precision current monitor with 50 Ohm output
    Works with AWG, Function generator and network analyzer
    Can be used to measure battery impedance

    -J2112A High Current Injector
    High PSRR Low Noise Regulator with Universal input
    Fast Transient Load Stepping up to 1Amp
    20nSec typ rise and fall time
    DC-40MHz usable range (interconnection dependent)
    Measures Non-invasive phase margin, Output impedance, reverse transfer, crosstalk, input filter stability
    Works with positive voltage sources
    Built in offset for use with Network Analyzer
    Precision current monitor with 50 Ohm output
    Works with any manufacturer’s AWG, Function generator and network analyzer

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
    더보기

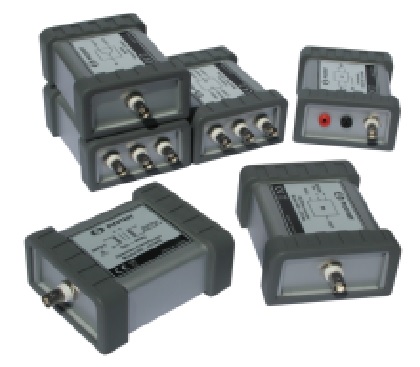

  • Injector Series 인젝터 시리즈 / J21XXX / PICOTEST

    J2100A: 1Hz ~ 5MHz Injection transformer
    J2101A: 10Hz~45MHz Injection transformer
    J2102A: Common Mode Transformer
    J2110A: Solid state voltage injector (Including J2170B High PSRR Regulated adapter)
    J2110AS: Solid state voltage injector
    J2111A: Current injector (Including J2170B High PSRR Regulated adapter)
    J2111AS: Current injector
    J2112A: High Current injector (Including J2170B High PSRR Regulated adapter)
    J2112AS: High Current injector
    J2113A: Differential Amplifier (Including J2170B High PSRR Regulated adapter)
    J2113AS: Differential Amplifier
    J2120A: Line injector
    J2121A: High Power Line injector
    J2130A: DC Bias injector
    J2140A: Attenuator
    J2150A: Calibrator
    J2160A: E5061B T/R Probe Adapter
    J2170B: High PSRR Regulated adapter
    J2180A: 0.1Hz~100MHz PreAmplifier(includes J2170B High PSRR Regulated Adaptor)
    J2180AS: 0.1Hz~100MHz PreAmplifier
    J2180A-20: 20Hz~100MHz PreAmplifier(includes J2170B High PSRR Regulated Adaptor)
    J2180AS-20: 20Hz~100MHz PreAmplifier
    J2190A: 0.1Hz-10Hz Active Filter (Including J2170B High PSRR Regulated adapter)
    J2190AS: 0.1Hz-10Hz Active Filter
    J21XXA-MVS: Maintenance and vertification service's charge

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
    더보기

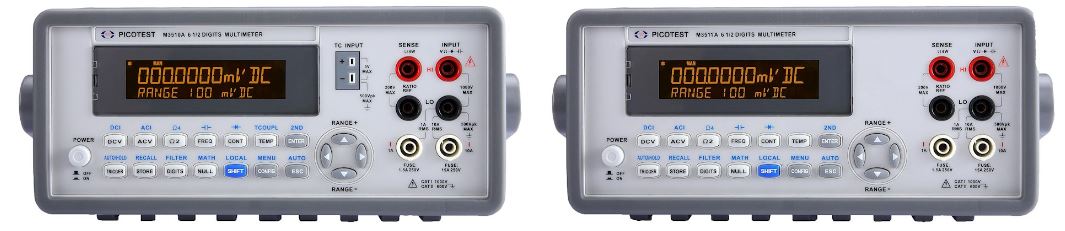

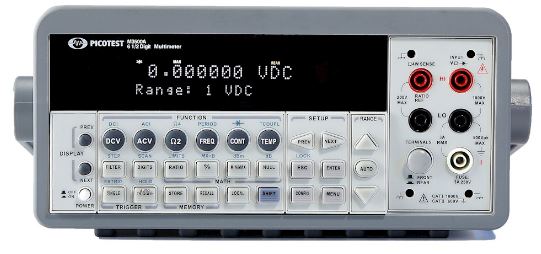

  • 탁상형 디지털 멀티메타 / M3500A (6 1/2 Digits High Precision Digital Multimeter) / PICOTEST

    Support USBTMC
    Stability, Speed and Accuracy
    High Performance: 2000 readings/sec
    Multi-Point Scan
    19 Full-Featured Functions
    Temperature Measurements
    Dual Displays with 3-color Annunciators
    Noise Immunity.
    Built-in USB, GPIB (optional) and RS232 (optional) Interfaces.
    Easy & Free PC applications

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
    더보기

  • 탁상형 디지털 멀티메타 / M3510A (6 1/2 Digits High Speed Digital Multimeter) / M3511A (6 1/2 Digits Economy Digital Multimter) / PICOTEST

    6 1/2 Digits High-Performance DMM
    50000 Readings/Sec Sampling Rate
    Dual Measurements & Displays
    Temperature Measurements
    Multi-Measurement & Math Functions
    True RMS
    Easy-to-Use MENU
    Built-in USB Interface & USBTMC Conformance
    Quality Assurance
    Free Application Software
    A Sample Application (Current vs. Temperature)
    Self-Test & Manual Calibration
    Dimension Information

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
    더보기

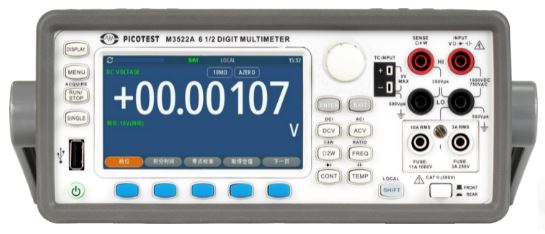

  • 탁상형 디지털 멀티메타 / M352XA 6 1/2 Digits 4.3”TRMS Multimeter / PICOTEST

    Fast Power-Up
    3-Channel DCV Measurement
    DC CTR Measurement
    Large 4.3" Display
    Real-Time Chart & Histogram
    DC & AC Current Up to 10A
    Capacitance Measurement Up to 100μF
    Thermocouple Measurement
    Sensitive Multi-Purpose Knob
    Replaceable Current Fuse
    Fast Measurement Setup
    Dual Display Measurement
    USB Host Datalogging (Time & Delay Setup) & FW Upgrade
    Rear Panel Measurement
    Fast Reading Rate: 100K Readings/s
    7.5 Mega-Reading Storage Memory
    Compatible SCPI Commands
    True RMS, More Accurate
    Multi-Language Operation Selection
    Universal 100V-240V AC Input Power
    Standard USB & LAN Control Interfaces
    Optional GPIB/RS-232 Interface (Easy External Interface Installation)
    Supportive Multi-Point Data Acquisition

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
    더보기

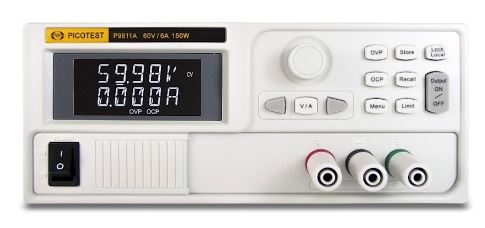

  • 파워 서플라이 DC Power Supply / P9610A (36V, 7A, 108W) P9611A (60V, 6A, 150W) / PICOTEST

    Advanced Function: Autoranging
    Cooling System Evolution: Advanced Fan
    Fast Recovery: Load Transient Response Time
    Protection Evolution I: Short-Withstood Circuit
    Protection Evolution II: OVP/OCP/OTP
    Elegant Design: Knob
    Pure Source: Low Noise Output
    Programmable Output: SEQ Function
    Other Features: Fast Settling & Compact Size

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
    더보기

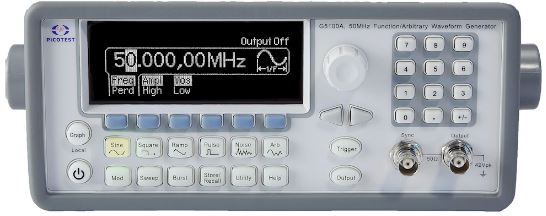

  • 함수발생기 G5100A (50MHz Arbitrary Waveform Generator) / PICOTEST

    50 MHz Sine, 25 MHz Square & 10 MHz arbitrary Waveforms
    14-bit, 125 MSa/s, 256 K-point Arbitrary Waveform
    Pulse, Ramp, Triangle, Noise & DC Waveforms
    Linear & Logarithmic Sweeps & Burst Operation
    AM, FM, PM (PSK), FSK & PWM Modulation Types
    Amplitude Range, 20 mVpp to 20 Vpp into Open Circuit
    Remote Control via USB, LAN or Opt. GPIB
    Graph Mode for Visual Verification of Signal Settings
    16-bit Data Output via Pattern Out
    Free Waveform Editor Software Wavepatt®
    User Friendly Operation

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
    더보기

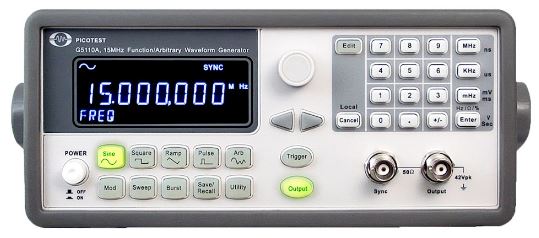

  • 함수발생기 G5110A (15MHz Arbitrary Waveform Generator) / PICOTEST

    15 MHz Sine, 15 MHz Square & 3 MHz arbitrary Waveforms
    14-bit, 50 MSa/s, 8 K-point Arbitrary Waveform
    Pulse, Ramp, Triangle & DC Waveforms
    Linear & Logarithmic Sweeps & Burst Operation
    AM ⑴, FM, PM, FSK & PWM Modulation Types
    Amplitude Range, 20 mVpp to 20 Vpp into Open Circuit
    Remote Control via USB or Opt. GPIB
    With high contrast LCD Display
    With high flexible Sequencing Arbitrary waveform mode
    Free Waveform Editor Software Wavepatt®
    User Friendly Operation

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
    더보기

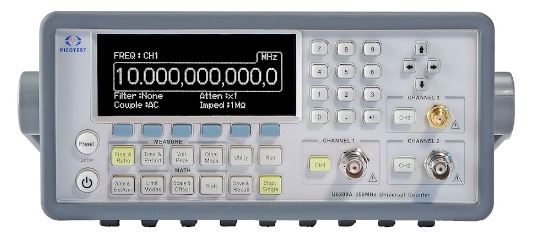

  • 주파수 카운터 U6200A (6GHz Universal Counter / U6220A (400MHz Frequency Counter) / PICOTEST

    Measuring frequency over 400MHz within standard 6GHz Channel 3.
    12 digits resolution with 1s gate time.
    40ps time domain function resolution.
    Great Features for Universal Purposes.
    Full Math Functions & Easy Operation Panel.
    Fast Measurement & Special Application
    Free Software & Familiar SCPI Commands.

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
    더보기
