중고계측기

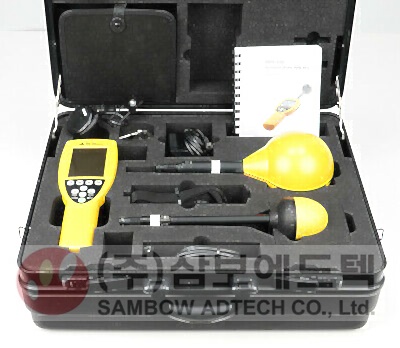

  • NARDA / Broadband Field Meter / NBM-550 & E-Field-Probe / EF-6092

    NARDA / Broadband Field Meter / NBM-550 & E-Field-Probe / EF-6092
    Measuring electric and magnetic fields
    NBM-550

    Broadband field meter with data logger for electric and magnetic field measurements from RF to microwave.



    Features
    Available with isotropic probes to cover 5 Hz to 60 GHz
    Large graphical display
    Plug-and-play probe interface with automatic probe parameter detection
    Fully automatic zeroing
    Extensive memory for logging of up to 5000 results


    Options
    GPS interface and mountable receiver for positioning data documentation
    Voice recorder for adding comments
    Conditional logging, threshold controlled
    -----------------------------------------------------------------------------------------------------------------------------------------------
    NBM E-Field-Probe EF 6092 100 MHz - 60 GHz)

    Robust high frequency field probe for pulsed signals, e.g. radar. 100 MHz - 60 GHz)

    Flat frequency response
    Thermocouple sensors
    True RMS measurement, even with pulsed signals
    Isotropic characteristic
    Multi-point calibration
    Modular, can be used with any NBM basic unit

    • Frequency Range : NBM-550 (5 Hz to 60 GHz) / EF-6092 (100 MHz to 60 GHz)
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
  • NARDA / Broadband Field Meter / NBM-550 & E-Field-Probe / EF-5091

    Measuring electric and magnetic fields
    NBM-550

    Broadband field meter with data logger for electric and magnetic field measurements from RF to microwave.



    Features
    Available with isotropic probes to cover 5 Hz to 60 GHz
    Large graphical display
    Plug-and-play probe interface with automatic probe parameter detection
    Fully automatic zeroing
    Extensive memory for logging of up to 5000 results


    Options
    GPS interface and mountable receiver for positioning data documentation
    Voice recorder for adding comments
    Conditional logging, threshold controlled
    -----------------------------------------------------------------------------------------------------------------------------------------------
    NBM E-Field-Probe EF 5091 (3 MHz - 50 GHz)

    Robust high frequency field probe for pulsed signals, e.g. radar. 3 MHz - 50 GHz

    Flat frequency response
    Thermocouple sensors
    True RMS measurement, even with pulsed signals
    Isotropic characteristic
    Multi-point calibration
    Modular, can be used with any NBM basic unit

    • Frequency Range : NBM-550 (5 Hz to 60 GHz) / EF-5091 (3 MHz to 50 GHz)
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
  • Impedance Stabilization Network for Shielded Balanced Pairs / Teseq / ISN ST08 (중고)

    For use with screened RJ45 connections
    Up to 8 lines/4 pairs
    Meets the requirements of CISPR 22, CISPR 32, CISPR 16-1-2
    Design given in figure D.11 of CISPR 22 and G.11 of CISPR 32
    Can be used as CDN for IEC 61000-4-6 immunity tests

    Impedance stabilization networks (ISN, or with CISPR 16-1-2 called AAN: asymmetric artificial network or AN: artificial networks for coaxial and other screened cables) are defined for measuring of conducted common mode disturbances at information technology equipment (ITE) as required in CISPR 22.
    The ISN is placed between the equipment under test (EUT) and auxiliary equipment (AE) or load which are necessary for the operation of the EUT. The ISN establishes the common-mode termination impedance for the EUT’s telecommunications port during measurement. All internal parts fulfill the requirements of cat.6 or better and provide optimal transfer performance. The used internal cable has a symmetrical impedance of 100 Ω. The pin- arrangement of the RJ45 sockets meets the requirements of EIA / TIA 568B.
    ISN ST08 meets the requirements of CISPR 22, EN 55022, CISPR 32, EN 55032, CISPR 16-1-2 and EN 55016-1-2. Unlike the ISN T types for unscreened balanced lines the ISN ST08 needs no additional adapters for LCL setting.


    Parameter Value
    Frequency range

    150 kHz to 230 MHz

    Line parameters

    4 pairs, balanced, shielded, 100 Ω impedance

    Power rating
    (EUT- and AE Port)

    AC max. voltage: 100 V
    DC max. voltage: 150 V
    Current max : 1.2 A (line)
    Test voltage: 200 VDC, 2 sec

    Common mode impedance
    (EUT Port)

    150 kHz to 30 MHz: 150 Ω ±20 Ω
    30 MHz to 230 MHz: 150 Ω +60 Ω/-45 Ω

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
  • Amplifier (100kHz-220MHz, 150W) / AR / 150A220M4 (중고)

    RATED OUTPUT POWER : 150 watts
    INPUT FOR RATED OUTPUT : 1.0 milliwatt maximum
    POWER OUTPUT @ : 3dB COMPRESSION
    Typical. : 250 watts
    Minimum : 150 watts
    POWER OUTPUT @ : 1dB COMPRESSION
    Typical : 200 watts
    Minimum : 150 watts
    FREQUENCY RESPONSE : 10 KHz - 220 MHz instantaneously
    GAIN (at maximum setting) : 53 dB minimum
    FLATNESS. : ±1.5 dB max.
    GAIN ADJUSTMENT (continuous range) : 18 dB minimum
    INPUT IMPEDANCE : 50 ohms, VSWR 1.5:1 max.
    OUTPUT IMPEDANCE : 50 ohms nominal
    MISMATCH TOLERANCE* : 100% of rated power without damage, foldback, shutdown or oscillation with
    any magnitude and phase of source and load impedance at rated output power.
    MODULATION CAPABILITY : Will faithfully reproduce AM, FM, or pulse modulation appearing on the input
    signal
    HARMONIC DISTORTION : Maximum at 150 watts output
    -20 dBc 10 kHz - 125 MHz
    -30 dBc 125 MHz - 220MHz
    THIRD ORDER INTERCEPT POINT : 60 dBm, typical
    RF RISE TIME (10% to 90%). : 3 nanoseconds maximum
    PRIMARY POWER (specify one) -: 100 - 120 and 200 - 240 VAC ±5%
    50/60 Hz, single phase
    1500 watts maximum

    • Frequency Range : 10 KHz - 220 MHz instantaneously
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :

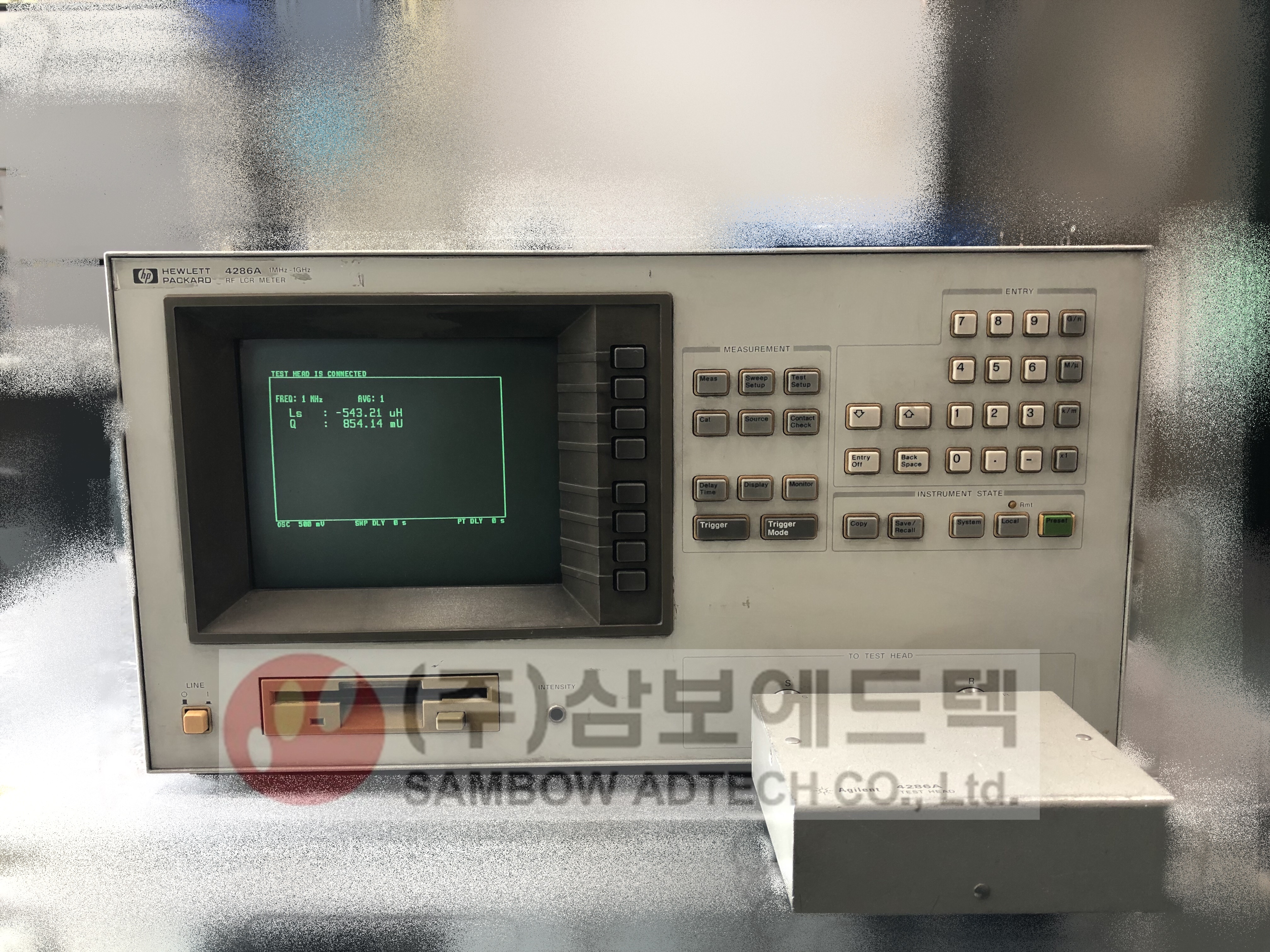

  • RF LCR Meter / HP / 4286A (중고)

    RF LCR Meter / HP / 4286A (중고)
    Test Frequency 1 MHz to 1 GHz
    10 kHz resolution
    Impedance Range 200 milli to 3 kOhms
    Basic Accuracy Z: 1 %, D: 0.01
    GPIB


    • Frequency Range : 1 MHz to 1 GHz
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
  • Universal Radio Communication Tester / R&S / CMU200 (중고)

    The R&S®CMU200 universal radio communication tester brings cost effectiveness through a variety of features, with extremely fast measurement speed and very high accuracy. In addition, the secondary remote addressing of the tester‘s modular architecture makes for intelligent and autonomous processing of complete measurement tasks and fast control program design. The R&S®CMU200 offers the hardware and software options necessary to handle your 3.5G, 3G, 2.5G and previous generation testing applications, including analog.

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
  • Bluetooth® Tester / R&S / CBT (중고)

    Bluetooth® Tester / R&S / CBT (중고)

    OPTION
    CBT-K52/K54

    The R&S®CBT performs Bluetooth® RF tests at extremely high speed. In addition to power, modulation, frequency and BER tests, the R&S®CBT carries out a variety of spectrum measurements without requiring any extra spectrum analyzers. While conventional Bluetooth® testers sequentially measure power, modulation, frequency accuracy and also frequency drift, the R&S®CBT performs all these measurements in a single test cycle, which makes the instrument very fast in production applications. For use in the lab, the R&S®CBT offers traces for power, modulation and spectrum, which are output in realtime on a large graphical display.

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
  • Wideband Radio Communication Tester / R&S / CMW500 (중고)

    Wideband Radio Communication Tester / R&S / CMW500 (중고)

    OPTION
    KM011/012/050/400/401/403/405/500
    KW400/401/402/403/500
    KA100/KA150
    KP080/400/500/501/505/510/514/530/588/591/880
    KF500
    KO510/511/512
    KT010/011/012/014/017/053/055
    KS400/401/403/404/405/410/411/413/500

    R&S®CMW500 Wideband Radio Communication Tester는 RF 통합 및 프로토콜 개발을 위한 범용 테스트 플랫폼입니다. R&S®CMW500 Callbox 및 R&S®CMW500 Protocol Tester로 제공됩니다. R&S®CMW500에는 전체 IP 전송량 및 품질 측정을 위한 통합형 E2E 데이터 솔루션이 포함되어 있습니다. 내부 페이딩 시뮬레이터 덕분에 실제와 동일한 전파 환경에서 쉽게 테스트를 수행할 수 있습니다. R&S®CMW500은 제품 개발부터 생산 및 서비스 단계에 이르기까지, 전 단계에서 사용할 수 있습니다. 가장 광범위한 기술을 지원하는 솔루션입니다.

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
  • Precision Semiconductor Parameter Analyzer / Agilent / 4156C (중고)

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
  • Oscilloscope / Agilent / DSO1012A / 100MHz, 2CH (중고)

    Oscilloscope / Agilent / DSO1012A / 100MHz, 2CH (중고)
    대역폭 - 100 MHz
    채널 - 2CH
    최대 메모리 깊이 - 20 kpts
    최대 샘플링 속도 - 2 GSa/s
    디스플레이 크기 - 5.7 인치
    파형 업데이트 속도 - 400 wfms/s
    ADC 비트 - 8비트
    운영 체제 - 임베디드

    • Frequency Range : 100MHz, 2CH
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :

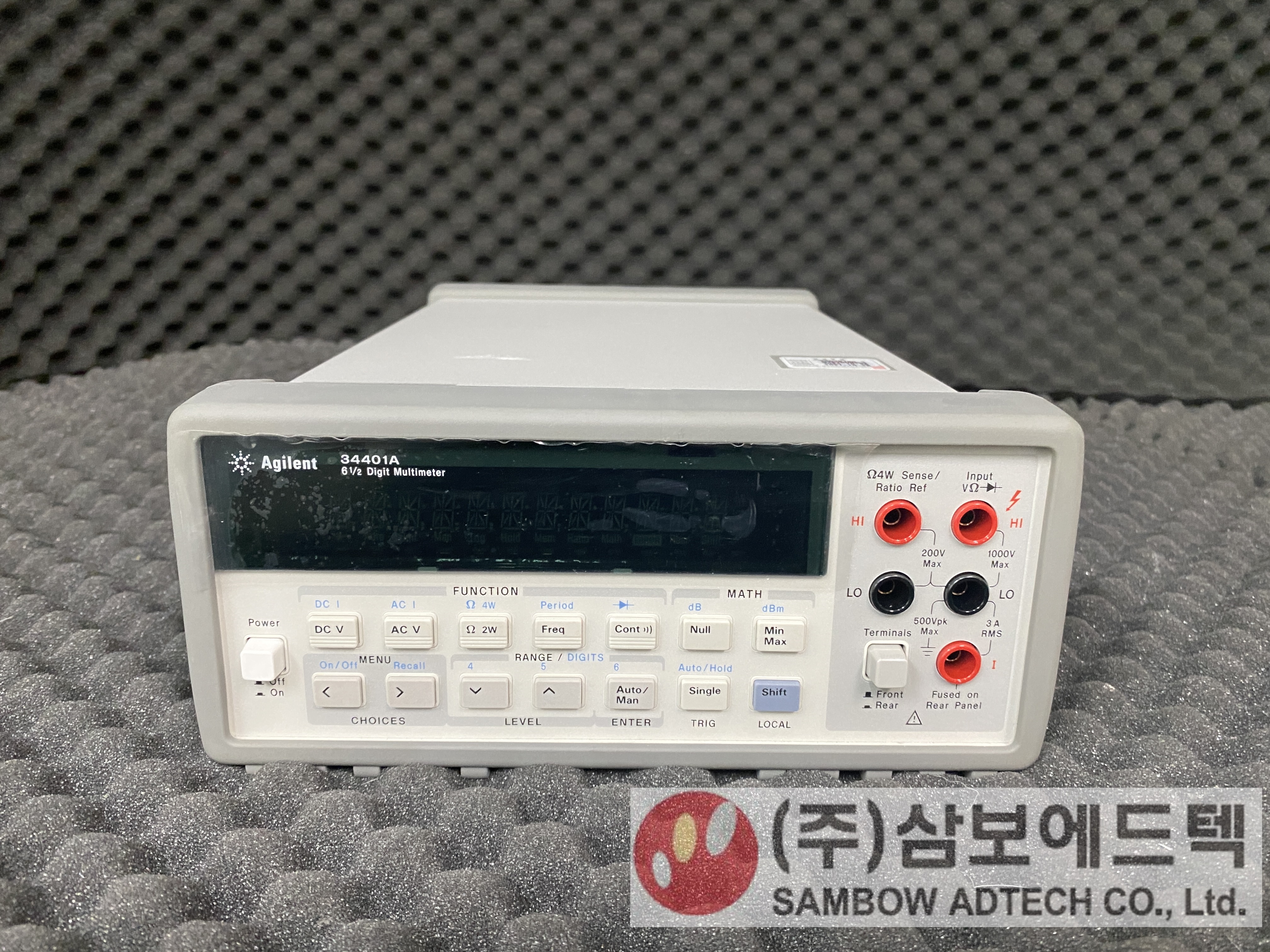

  • 6½ Digit Multimeter / Agilent / 34401A (중고)

    6½ Digit Multimeter / Agilent / 34401A (중고)
    AC Current 1 A ~ 3 A
    AC Voltage Range 100 mV ~ 750 V
    DC Current 10 mA ~ 3 A
    DC Voltage Range 100 mV ~ 1000 V
    Frequency Range 3 Hz ~ 300 kHz
    Interface 100 ohm / RS-232
    Number of Digits 6.5
    Resistance Range HP-IB / 100 Mohm

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :

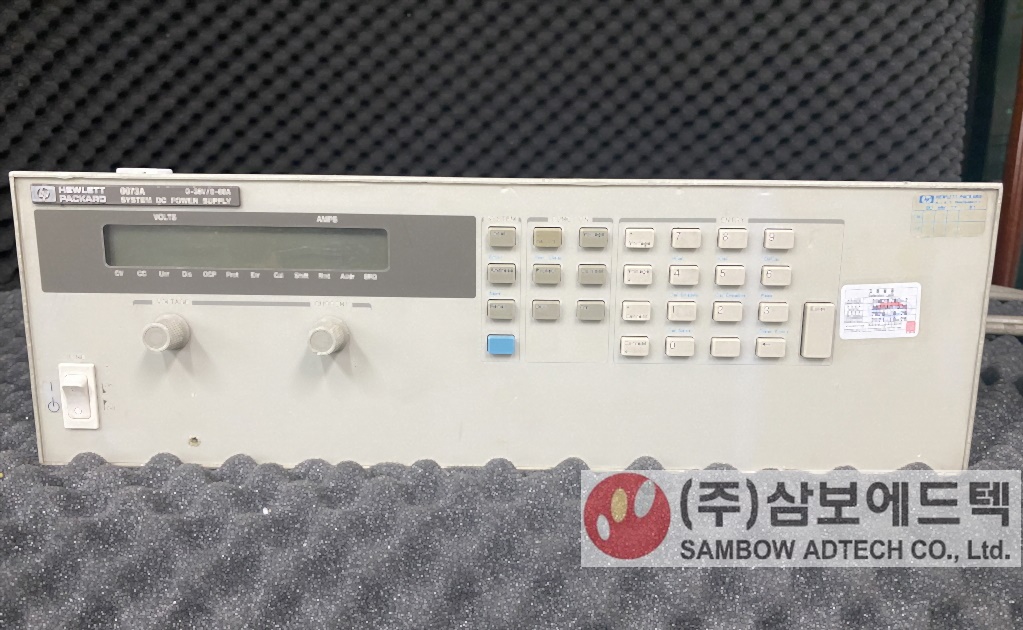

  • Power Supply / HP / 6673A (중고)

    Agilent/HP / Power Supply / 6673A
    Line Regulation HP-IB - 2 mA
    Load Regulation V/C 800 uV - 40 mA
    Other Features 2 mV
    Output 1,Volts/ Max. Current 35 Volts - 60 Amps
    Total Power 2100 Watts
    Type DC - Single Out

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
  • Oscilloscope / Tektronix / DPO7254 / 4 GHz, 4CH (중고)

    Tektronix DPO7254 Oscilloscope, 4-Channel, 2.5 GHz
    The Tektronix DPO7254 is part of Tektronix's new generation of real-time digital phosphor oscilloscopes and are the industry's best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging and testing sophisticated electronic designs.
    Tektronix DPO7254 Features:
    * Real-Time Sample Rates 1 Channel (max): 40 GS/s
    * 2-Channel (max): 20 GS/s * 3-4 Channels (max): 10 GS/s Standard Record Length
    * 1 Channel: 400 M * 2-Channel: 200 M * 3-4 Channels: 100 M

    • Frequency Range : 4 GHz, 4CH
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
  • Precision LCR Meter / HP / 4284A (중고)

    Frequency
    Wide Range DC Current Biased Inductance Measurement
    0.05% basic accuracy
    40 A DC support with the Keysight 42841A Bias Current Source

    • Frequency Range : 20 Hz to 1 MHz
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
  • Signal Generator / R&S / SML03 (중고)

    • Frequency Range : 9kHz to 3.3GHz with 0.1Hz resolution
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :

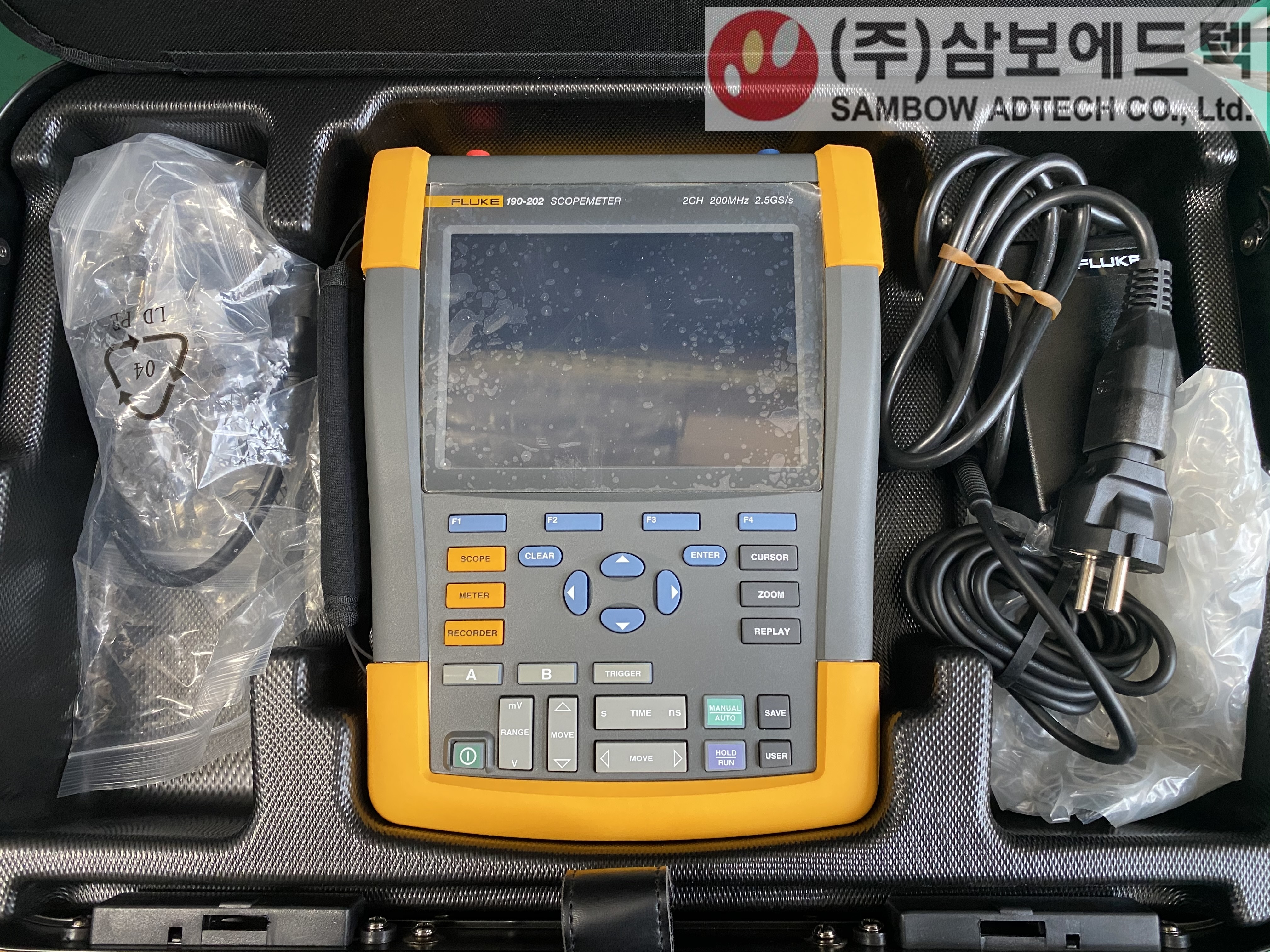

  • ScopeMeter / Fluke / 190-202 (중고)

    CAT III 1000V / CAT IV 600V 안전 등급

    200MHz 대역폭 모델 / 2.5 GS / s

    딥 메모리 : 채널 캡처 당 10,000 샘플

    전용 5000 카운트 디지털 멀티 미터

    연결 및 보기 연속 자동 트리거, 단일 샷, 펄스 폭 및 비디오 트리거링

    ScopeRecord 롤 모드, 최대 48 시간 동안 파형 샘플 데이터 캡처

    TrendPlot, 최대 22 일 동안의 추세 측정치

    고급 자동 측정, 전력 (Vpwm, VA, W, PF) 및 시간 (mA, V / s, w / s)

    IP-51 분진 및 방적 사양

    메모리 장치 및 PC 연결 용 절연 USB 포트

    • Frequency Range : 200MHz / 2Ch
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
  • Infiniium High Oscilloscope / Agilent / DSA90604A / 6GHz, 4CH (중고)

    6GHz 대역폭
    4개 아날로그 채널 각각에서 20GSa/s
    채널당 표준 20Mpts 메모리, 업계 최고 수준의 1Gpts로 업그레이드 가능
    최고의 실시간 측정 정확도를 제공하도록 설계됨
    업계에서 가장 낮은 노이즈 플로어(100mV/div에서 1.92mV)
    가장 심층적인 지터 분석 기능(PRBS^23) 및 8.5Gb/s 이하의 데이터 속도에 대한 가장 정확한 실시간 Tj 및 Rj 특성 분석
    하드웨어 가속 디임베딩을 통해 프로브, 픽스처 및 채널 효과에 대한 간편한 보상 가능

    • Frequency Range : 6GHz, 4CH
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
  • Infiniium Oscilloscope / Agilent / DSO80404B /4 GHz, 4CH (중고)

    특징:
    최대 40 GSa/s 샘플링 속도와 4 GHz 대역폭의 실시간 오실로스코프
    40 GSa/s 샘플링 속도에서 최대 2 Mpts, 4 GSa/s에서 64 Mpts MegaZoom 딥 메모리
    InfiniiMax 1,132A 프로빙 시스템과 함께 4 GHz의 시스템 대역폭 구성
    500 fs rms 이하의 트리거 지터
    256레벨로 강도를 세분하여 표시하는 XGA 터치 스크린 디스플레이

    • Frequency Range : 4 GHz, 4CH
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :

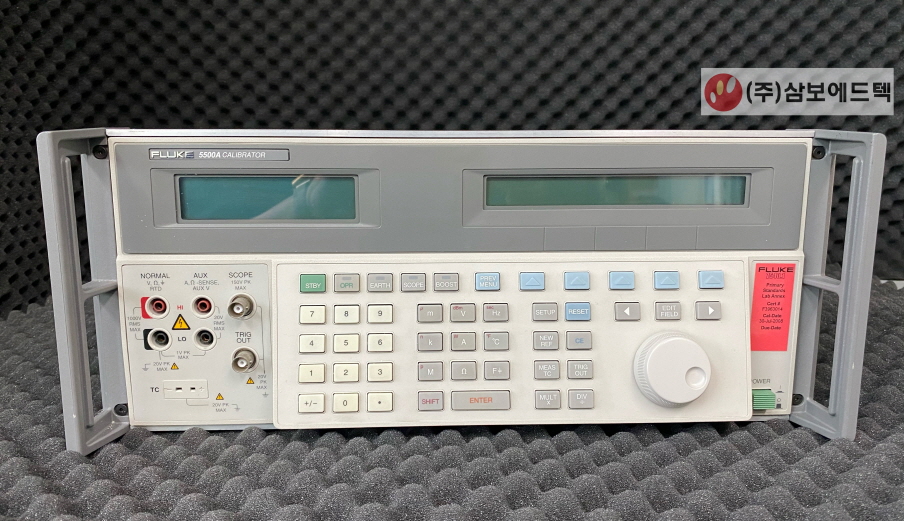

  • Multi-Product Calibrator 멀티제품 교정기 / Fluke / 5500A (중고)

    DC전압 범위 : 0 ~ ±1020V
    DC전류 범위 : 0 ~ ±11A
    범위: 0 ~ 3.29.999 MΩ
    AC전압 범위 : 1 mV ~ 1020V
    10 Hz ~ 500 kHz, 사인
    전류 AC 범위 : 29 m A ~ 11A
    10 Hz ~ 10 kHz, 사인
    용량 범위 : 0.33 nF ~ 1.1 mF
    열전대 소스와 측정 범위 : -250°C ~ +2316°C (11형)
    RTD 소스 범위 : -200°C ~ +630°C (8형)
    DC 전원 범위 : 109 mW ~ 11 kW
    AC 전원 범위 : 109 mW ~ 11 kW
    45-65 Hz, PF=1
    위상 범위 : 0 ~ ± 179.99°
    주파수 범위 : 0.01 Hz ~ 2.0 MHz
    표준 인터페이스 : IEEE-488 (GPIB), RS-232, 5725A (5500A 전용)
    안전 : IEC 1010-1 (1992-1); ANSI/ISA-S82.01-1994; CAN/CSA-C22.2 No. 1010.1-92 을 준수하도록 설계
    아날로그 저절연 : 20V
    EMC : FCC Rules Part 15 를 준수하도록 설계
    라인전원 : 전원전압(선택가능): 100V, 120V, 220V, 240V
    전원주파수 47 ~ 63 Hz
    전원전압변동: : 전원전압 설정값 주위의 ± 10%
    소비전력 : 300 VA
    크기 높이 : 17.8 cm (7 in), 표준 랙증가, 장비 하단의 발에 대해 1.5 cm (0.6 in) 추가
    폭 : 43.2 cm (17 in), 표준 랙폭
    깊이 : 47.3 cm (18.6 in) 전체
    중량(옵션 제외) 20 kg (44 lbs)
    사양 신뢰도 구간 > 99%

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
